v1.2.3

Theses are benchmarks made with :

RSBAC version 1.2.3.
Linux Kernel Gentoo Hardened RSBAC 2.6.7-r10
GCC 3.3.4
PaX is enabled everywhere as in Gentoo Quickstart
Gentoo 2004.3 in Single User Mode
A Pentium-M 733 ULW (Dohan) @ 1.1Ghz, speedstep Off

All tests were run 3 times and the average calculated in second. We are compiling a vanilla 2.6.9 kernel from kernel.org

Four kernels have been tested:

Vanilla Hardened, means rsbac-dev-sources, features Gentoo 2.6.7 patchset and Hardened patchset and RSBAC off. (No framework)
RC + Auth
All RSBAC Options On
Default Gentoo RSBAC kernel as specified in the Gentoo Quickstart

Real represents the real time spent, in seconds User represents the total of CPU-seconds in user mode Sys represents the total of CPU-seconds in kernel mode Lower is better.

	real	user	sys
Vanilla	656	619	26
RC+Auth	661	619	34
Gentoo	664	620	44
All On	679	623	58

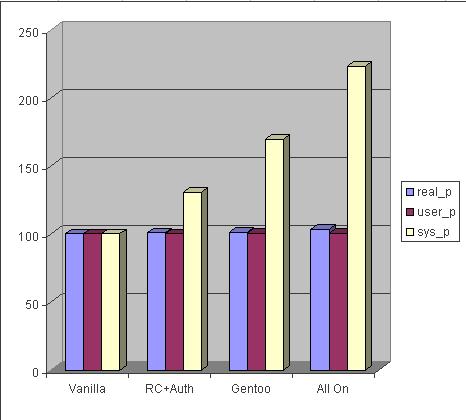

All theses values are percentages of performance decrease, based on Vanilla = 100 percent. Lower is better.

	real_p	user_p	sys_p
Vanilla	100	100	100
RC+Auth	100,7	100	130,7
Gentoo	101,2	100,1	169,23
All On	103,5	100,6	223,07

As you can see, only the kernel mode time increase significantly in RSBAC 1.2.3, but there are only very few actions done in this mode so it doesn’t really affect the real time very much.

To sum it up, we have a 1.2% difference of real time taken with a production kernel setup (Gentoo config), only 0.7% on a RC+Auth only enabled kernel, and a bigger 3.5% with every single option on.
